Description

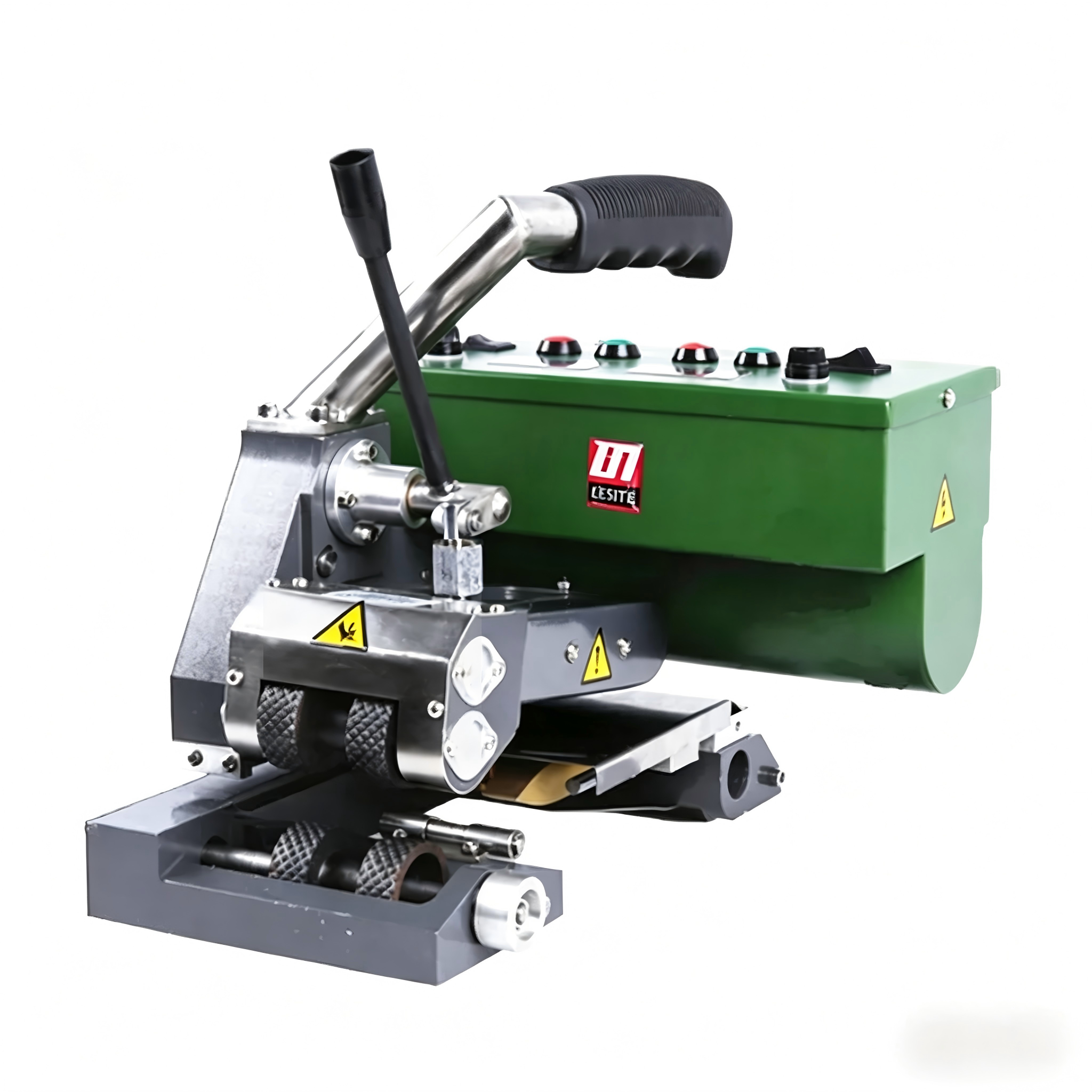

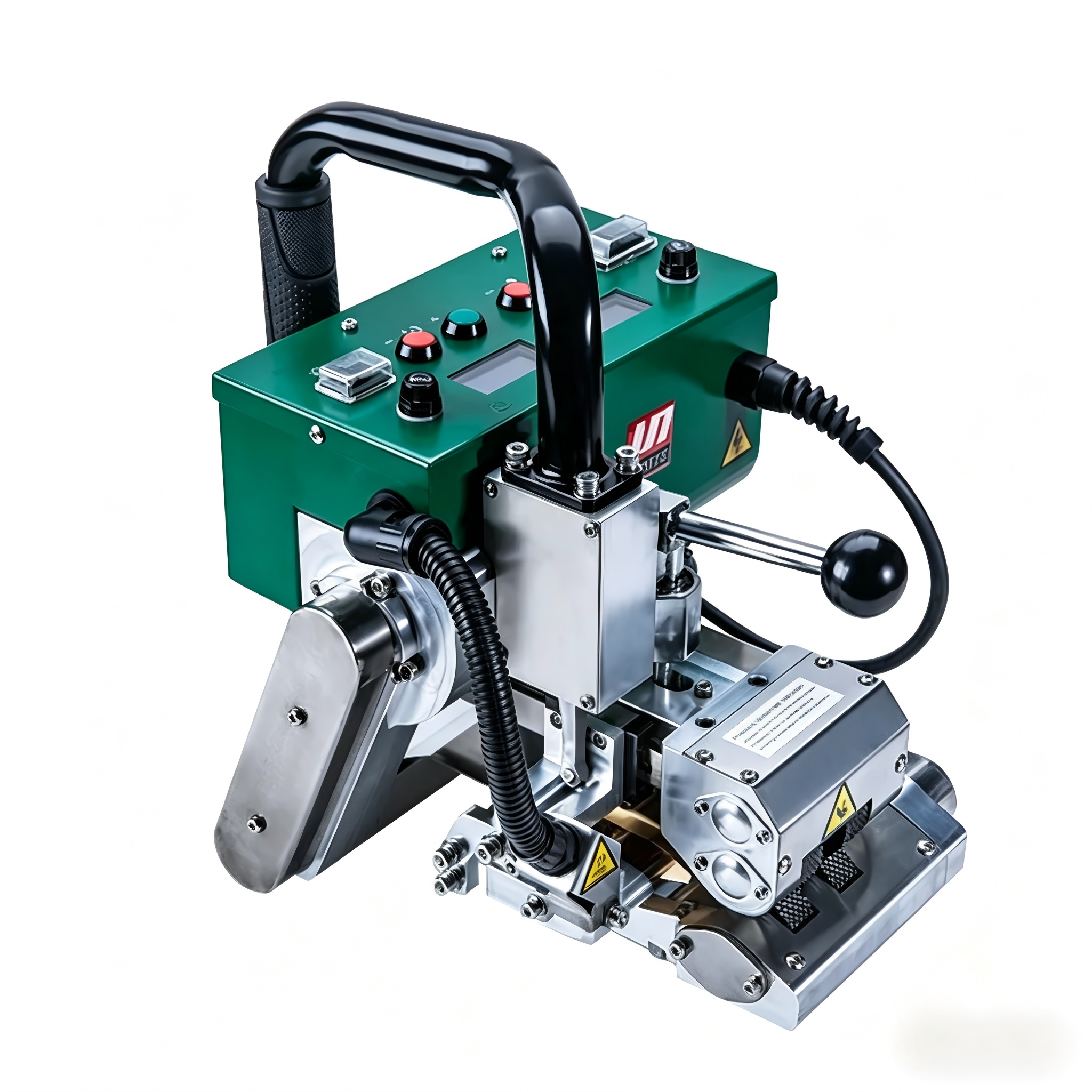

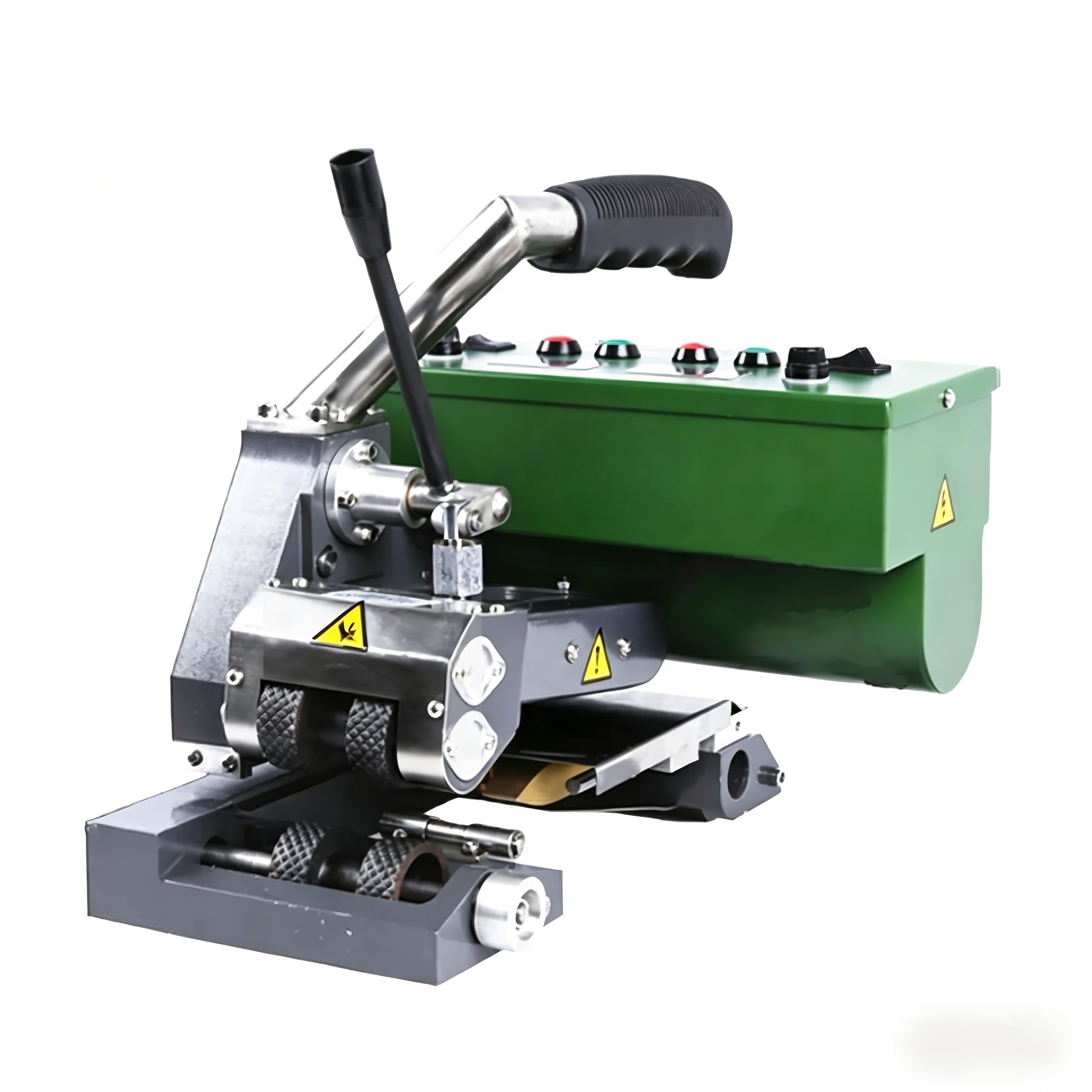

Description of HDPE Geomembrane Welding Machine BGT-GM Series

HDPE Geomembrane welding machine BGT-GM series adopts advanced heat weaving structure with smaller volume, lighter weight and higher power. It is suitable for welding all kinds of thermal membrane materials from 0.2 to 2.0mm. It has bidirectional membrane forming machine and unidirectional same side membrane forming machine. The product is suitable for tunnel, subway, water conservancy, aquaculture, pond, and landfill, chemical mine and other seepage control project construction, sewage treatment, roof waterproofing and other fields.

HDPE geomembrane welding machine BGT-GM series features

1. Accept small orders to meet small batch customized service.

2. Meet different voltage requirements of different countries and plug requirements of European standard, American standard and British standard.

3. Standardized production, full mold processing, high assembly precision, stable quality and long service life.

4. Advanced feedback intelligent digital control system, temperature, speed through the LCD screen intuitive display, high precision control, and strong protection function.

5. Advanced T-type cantilever head design and pressure adjustment mechanism to ensure the pressure balance of the left and right welding channel weld seam uniformity, welding pressure is adjustable without interruption, to achieve the best welding effect.

6. Special steel pressure wheel, strong compression force without slipping, durable.

7. Super high-power alloy wedge knife and unique heating design, higher heating efficiency, good welding performance, long service life.

8. The product comes with an extra maintenance spare parts kit, including maintenance tools, fuses, spare hot wedges and pressure rollers.

According to the customer’s application requirements, to provide two-way film and single side of the same side into the film two film models to choose from.

How to choose the model of HDPE geomembrane welding machine BGT-GM series?

BGT-GM1 geomembrane welding machine, rated power 1400W, adopts two-way membrane feeding welding method, temperature and speed double display.
BGT-GM2 geomembrane welding machine, rated power 600W, adopts one side and the same side into the membrane welding method, temperature and speed double display.

PP Compression FittingsHigh Pressure FIttings SDR6-SDR17HDPE Fabricated Segments Fittings

We have completed related products, and tools to complete with our HDPE Pipe for your construction, One-stop supply, to meet your different requirements, and save your cost and time, Please visit our HDPE Fittings Category and Welding Machine Category, Contact Us To get more details.

Specification

Specification of HDPE Geomembrane Welding Machine BGT-GM Series

Application

Application of HDPE Geomembrane Welding Machine BGT-GM Series

1. Construction engineering: geomembrane welding machine is used for waterproofing treatment of basement, roof, tunnel, and underground pipeline in construction waterproofing project.

2. Water engineering: geomembrane welding machine is used for anti-seepage treatment of reservoirs, dams, rivers, canals, etc. to prevent soil erosion.

3. Environmental engineering: geomembrane welder is used for environmental protection of landfills and waste disposal sites to prevent leakage of pollutants.

4. Agricultural engineering: geomembrane welder is used in farmland water conservancy, forest water conservancy, farmland drainage and irrigation, and other agricultural irrigation systems to prevent leakage treatment.

5. Railway, highway engineering: geomembrane welder is used for anti-seepage treatment in railroad and highway engineering to ensure the stability of the roadbed.

6. Mining engineering: geomembrane welder is used for sealing and isolation of mining wastewater and slag pools to prevent leakage of pollutants.

7. Urban municipal engineering: geomembrane welding machine for urban municipal sewage treatment plants, garbage disposal sites and other environmental protection.

8. ports and seaside projects: geomembrane welder is used to prevent seawater erosion and siltation, to protect the safety of ports and seaside projects.
