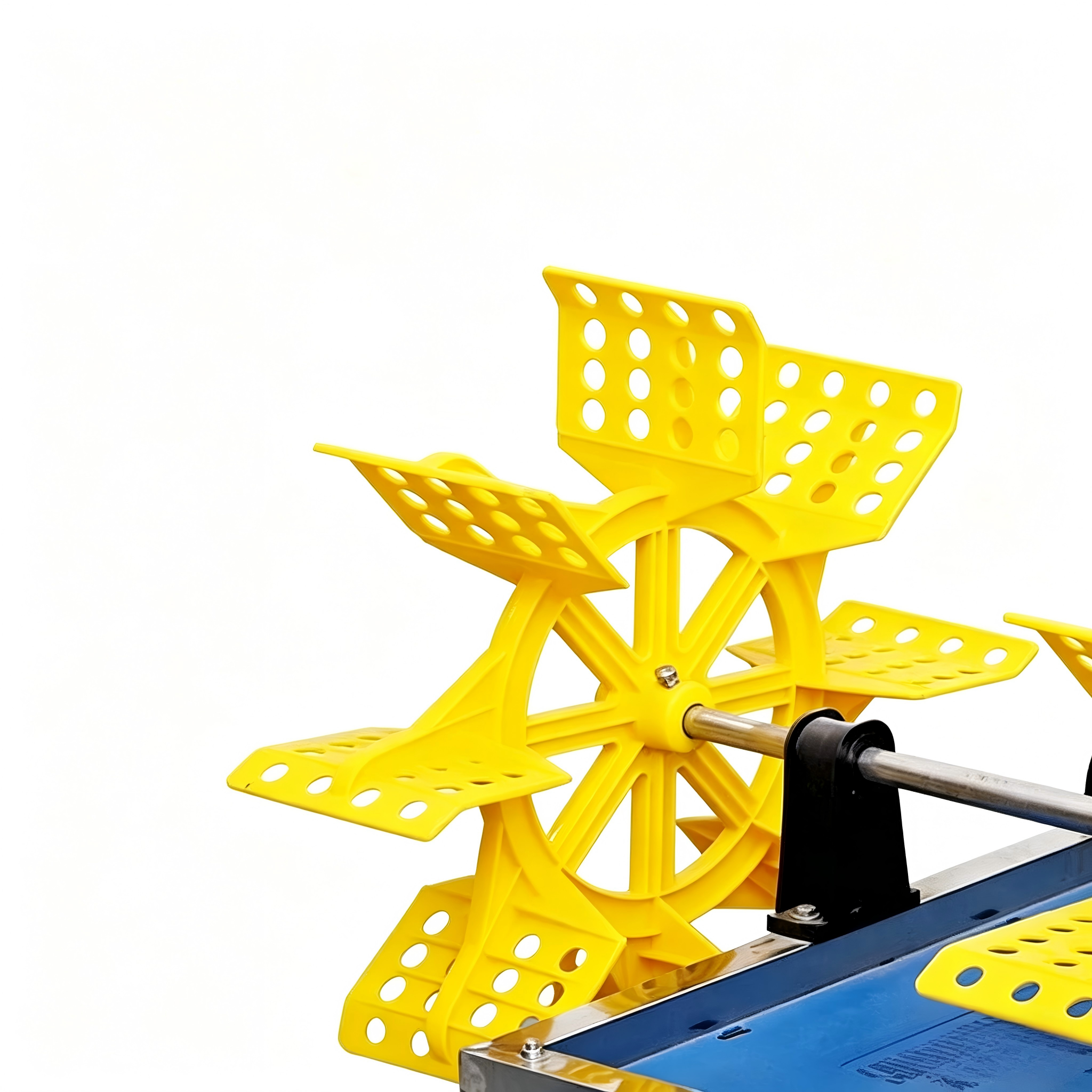

2HP 4 Impeller Paddle Wheel Aerator for Pool

›

‹

  • 2HP 4 Impeller Paddle Wheel Aerator for Pool
  • 2HP 4 Impeller Paddle Wheel Aerator for Pool
  • 2HP 4 Impeller Paddle Wheel Aerator for Pool

›

2HP 4 Impeller Paddle Wheel Aerator for Pool
Features:
1)With high efficiency and saving over 20% electric energy than tranditional models;
2)The arcuate-bevel gear is made of chromium-manganese-titanium with carbon-nitride surface treatment.This ensures long usage life spans and high rigidity;
3) A mechanical seal is available to prevent oil leakage;
4) Inside protectors are available to avoid the motor being accidentally burnt out;
5) PE floats, nylon impellers, and stainless steel shafts and frames are available;
TEL: +86 17860543180
WhatsApp: +86 17860543180
E-mail: youxiang@126.com
PRODUCT DETAILS

Basic Info.


Model NO.YC1.5Power SourceElectric
CertificationISO9001:2008ConditionNew
Motor Power1.5kwWeight74kg
Square Measure Covering0.49-1.65 AcreNoise78 dB(a)
Phase3Oxygenation2.6kg/H
UseShrimp Fish Eel CrabWarranty1 Year
Name2HP 4 Impeller Paddle Wheel Aerator for PoolTransport PackageExport Standard Carton
SpecificationSC/T6017-1999TrademarkDingshun
OriginJinan, ChinaHS Code8479899990




Product Description

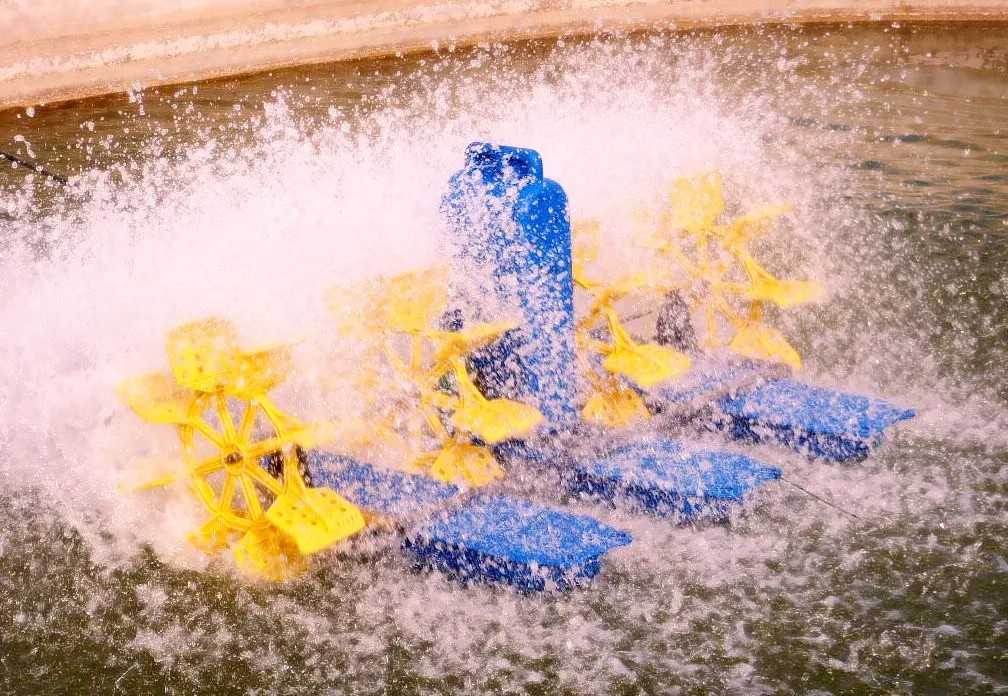

2HP 4 Impeller Paddle Wheel Aerator for pool

Specification:

Model

HP

Phase

Voltage

Cover Area

Oxygen Transfer

20/40/40H Load

YC1.5

2

3

380V~440V

0.75-1.2acre

2.6kg/h

56/130/140


Main parts

NO.

Item Name

Quantiy

Reference

Function

1

Motor

1set

1.5kw,air cooling,electric and manual sart

Provide power

2

Reducer

1set

Gear style, 14:1, cast iron body

Transferring the power speed

3

Float

3pcs

100%Brand new HDPE

Support the main machine

4

Impeller

4pcs

100%Brand new PP

Paddle the water

5

Transmission Rod

2pcs

304# stainless steel solid

Transferring the force

6

Frame

1pc

304# angle stainless steel

Supporting and fixing the machine



Features:
1)With high efficiency and saving over 20% electric energy than tranditional models;
2)The arcuate-bevel gear is made of chromium-manganese-titanium with carbon-nitride surface treatment.This ensures long usage life spans and high rigidity;

3) A mechanical seal is available to prevent oil leakage;

4) Inside protectors are available to avoid the motor being accidentally burnt out;

5) PE floats, nylon impellers, and stainless steel shafts and frames are available;

6) With oxygen transfer rates of 1.1kg (O2)/h, 36.3% higher than the standard, power efficiency is 1.25kg (O2)/kWh, 36.8% higher than the standard.
