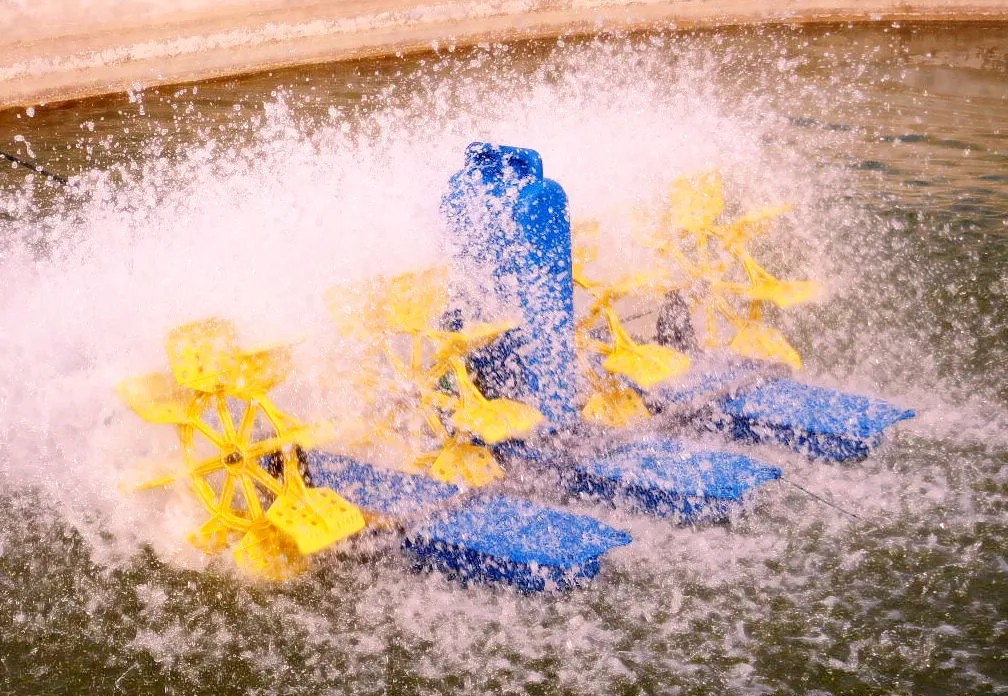

Hot Sale Shrimp Farming Aerator, Aerator for Fish Farm, Fish Pond Aerator

Hot Sale Shrimp Farming Aerator, Aerator for Fish Farm, Fish Pond Aerator
Features:
1)With high efficiency and saving over 20% electric energy than tranditional models;
2)The arcuate-bevel gear is made of chromium-manganese-titanium with carbon-nitride surface treatment.This ensures long usage life spans and high rigidity;
3) A mechanical seal is available to prevent oil leakage;
4) Inside protectors are available to avoid the motor being accidentally burnt out;
5) PE floats, nylon impellers, and stainless steel shafts and frames are available;
TEL: +86 17860543180
WhatsApp: +86 17860543180
E-mail: youxiang@126.com
PRODUCT DETAILS

Basic Info.


Model NO.YC1.5Power SourceElectric
CertificationISO9001:2008ConditionNew
Motor Power1.5kwWeight74kg
Square Measure Covering0.49-1.65 AcreNoise78 dB(a)
Phase3Oxygenation2.6kg/H
UseShrimp Fish Eel CrabWarranty1 Year
NameHot Sale Shrimp Farming Aerator, Aerator for FishTransport PackageExport Standard Carton
SpecificationSC/T6017-1999TrademarkDingshun
OriginJinan, ChinaHS Code8479899990




Product Description

hot sale shrimp farming aerator , aerator for fish farm, fish pond aerator


Specification:

Model

HP

Phase

Voltage

Cover Area

Oxygen Transfer

20/40/40H Load

YC1.5

2

3

380V~440V

0.75-1.2acre

2.6kg/h

55/120/140

Main Parts:

No.Item NameQuantityReferenceFunction
1Motor1 set2HP, cast iron body with 100% copper wireProvide power
2Reducer1 setArcuate-bevel gear, cast Iron body, ratio 1:14Transfer the power speed
3Float3pcsVirgin HDPE, UV and chemical resistance, high strength
320x190x1760mm
Support the machine on water
4Impeller4pcsNew PP, 210x640mmLift substantial splash into air and make strong water waves and flow
5Shaft2pcs304# Stainless steel, 25x760mmTransferring the force
6Frame1pc304# SS, 1550x765x30mmSupport and fix the machine
7Motor Cover1pcVirgin HDPE, UV and chemical resistanceProtect motor
8Bush Bearing2pcsNylon with hard-wearing sleeveSupport the shafts
9Movable Joint2pcsSS and rubber, 110x110mmConnect shaft and gear axle
10Screw And Nut1bagSSConnect and fix parts




Features:
1)With high efficiency and saving over 20% electric energy than tranditional models;
2)The arcuate-bevel gear is made of chromium-manganese-titanium with carbon-nitride surface treatment.This ensures long usage life spans and high rigidity;

3) A mechanical seal is available to prevent oil leakage;

4) Inside protectors are available to avoid the motor being accidentally burnt out;

5) PE floats, nylon impellers, and stainless steel shafts and frames are available;

6) With oxygen transfer rates of 1.1kg (O2)/h, 36.3% higher than the standard, power efficiency is 1.25kg (O2)/kWh, 36.8% higher than the standard.
