Professional Geomembrane Factory HDPE Textured Geomembrane

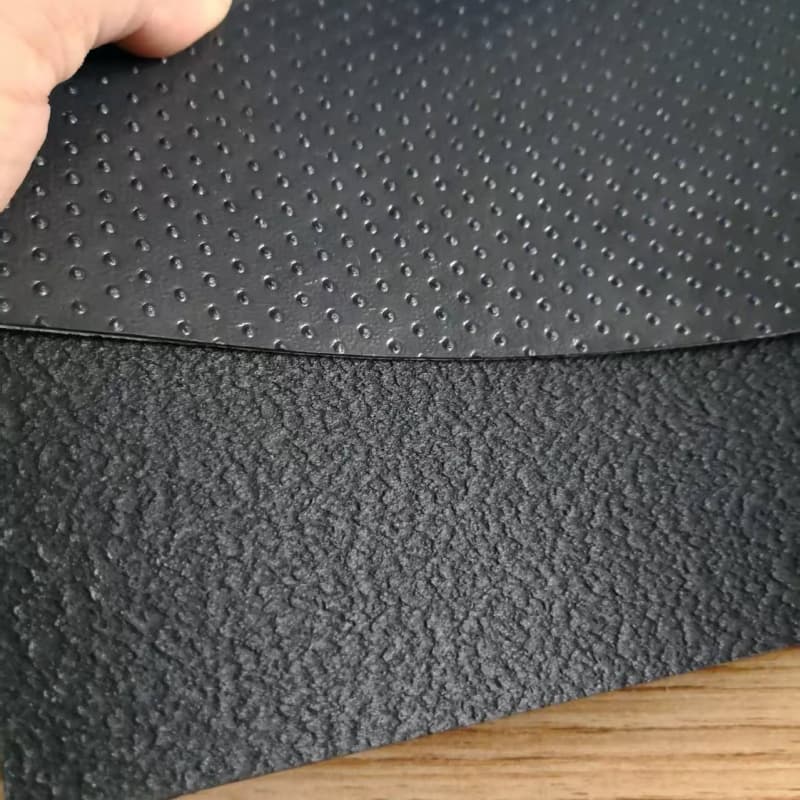

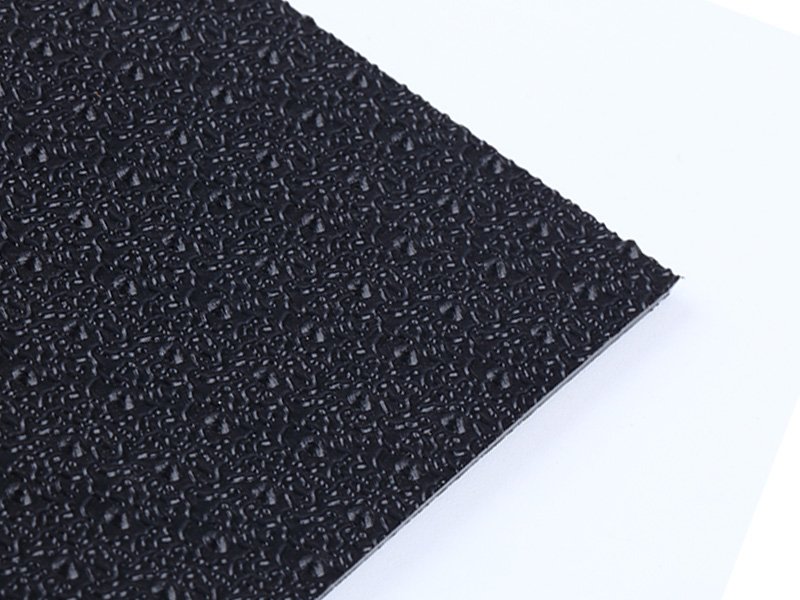

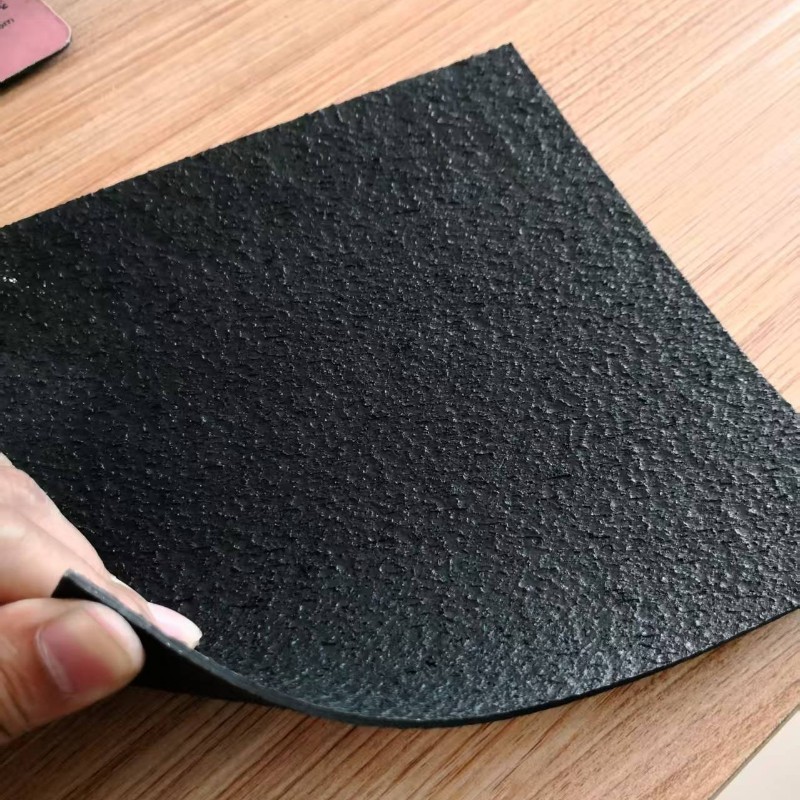

HDPE textured geomembrane features a surface texture (common types include stripes and papillary) on one or both sides through a special embossing or co-extrusion process. This texture significantly improves interfacial friction while maintaining the core properties of HDPE.

High-density polyethylene (HDPE) geomembranes, with a uniformly rough surface on one or both sides, are produced using a specially formulated virgin resin through a specialized blow molding process.

 HDPE textured geomembrane is made from approximately 97.5% polyethylene, 2.5% carbon black, and a trace amount of antioxidants; no other additives, fillers, or extenders are used.

Since its establishment, Nuokun has been committed to providing one-stop, high-quality geosynthetics to customers worldwide, supporting both ODM and OEM customization.

Types & Parameters

Advantages & Strengths

High Interface Shear Strength:

Textured structures significantly increase the interfacial friction angle (typically in the range of 25°-35°+) with geotextiles, geocomposites, compacted soils, and geogrids, providing excellent anti-slip stability.

Excellent permeability resistance:

maintains the inherent low permeability of HDPE, and the texture does not damage the permeability resistance of the membrane.

Enhanced Anchorage:

Textured surface provides stronger mechanical bite in the anchor groove area.

Long Service Life:

Same as smooth film, with long-term durability.

Popular Applications

Steep Slope Liners:

The preferred material for anti-seepage linings on slopes, embankments, valley-type landfill slopes, and tailings dam slopes, effectively preventing overburden slip. (Core Application)

Capping System Anchorage Zones:

The anchor trench areas at the edge of the capping system utilize a high coefficient of friction to enhance anchoring effectiveness.

Capping System Barriers on Slopes:

The primary anti-seepage layer of the capping system located on slopes.
