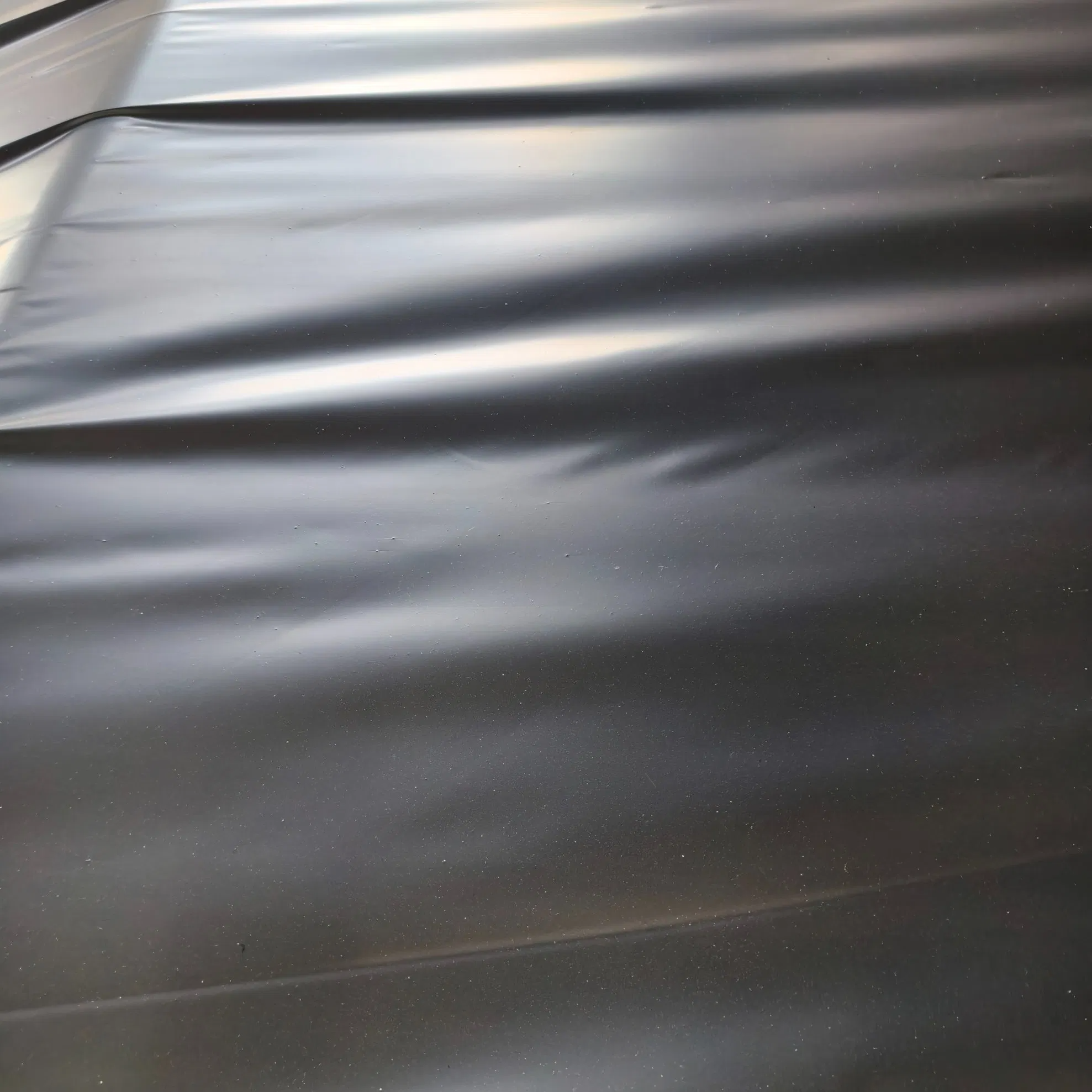

HDPE Geomembrane smooth and textured rough surface GM13 standard

HDPE Geomembrane smooth and textured rough surface GM13 standard
Features
1) Good physical and mechanic performance
2) High tearing resistance, strong deformation adaptability
3) Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance
4) Good adaptability to high and low temperature, non-toxicity, long service life
5) Good waterproof, drainage, anti-seepage and damp proof effects
TEL: +86 17860543180
WhatsApp: +86 17860543180
E-mail: youxiang@126.com
PRODUCT DETAILS

Product Description

Industry-specific attributes



Warranty

  3 years

After-sale Service

Online technical support

Project Solution Capability

Others

Application

Outdoor, pond, landfill, mine etc

Design Style

Industrial


Other attributes



Place of Ongin

China

Type

Geomembrane

Brand Name

Dingshun

Product Name

  Rough geomembran

Material

HDPE LDPE LLDPE

Color

Black white blue or as required

Keyword

Geomembranes

Length

  50-200m/roll or as requirement

Width

2m-8m

Thicknes

0 . 5mm-2.5mm


PRODUCT PARAMENTERS/geomembrane data



Item

Index

The thickness(mm)

0.7511.251.522.53

The density(g/cm2)

≧0.94

Coarse height(mm)

≧0.25

Tensile yield strength(The horizontal and vertical)N/mm

≧11

≧15

≧18

≧22

≧29

≧37

≧44

Tensile fracture strength(The horizontal and vertical)N/mm

≧8

≧10

≧13

≧16

≧21

≧26

≧32

Yield elongation(The horizontal and vertical)%

≧12

Elongation at break (longitudinal and transverse)%

≧100

Right-angle tearing load (longitudinal and transverse)N

≧93

≧125

≧160

≧190

≧250

≧315

≧375

Puncture resistance N

≧200

≧270

≧335

≧400

≧535

≧670

≧800

Stress cracking under tensile load (dead-load tensile method with notch)h

≧300

Carbon black content%

2.0~3.0

Oxidation induction time(OIT)

Induction time of oxidation at atmospheric pressure≧100

Induction time of high pressure oxidation≧400

85℃ thermal aging (OIT retention rate at atmospheric pressure after 90 days)

≧55


Uv resistance (OIT retention rate after 1600h UV irradiation)

≧50


Features

1) Good physical and mechanic performance

2) High tearing resistance, strong deformation adaptability

3) Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance

4) Good adaptability to high and low temperature, non-toxicity, long service life

5) Good waterproof, drainage, anti-seepage and damp proof effects

6) Complete width and thickness specifications, low cost and easy installation.


Aquaculture Industry

1)Aquaculture

For example , industrialized aqua -culture ponds , fish ponds , shrimppons lining , sea cucumber circleprotection , etc .

2)Water Conservancy

For example , seepage prevention,leakage stoppage , and reinforcement of rivers . lakes , reservoirs and slope

protection , etc

3)Municipal Engineering

For example , tunnel , subway , underground works of buildings and roof cisterns , impervious roof garden , lining

of sewage pipes,ete

4)Petrifaction

For example , anti seepage of oil storage tanks in chemicalplants, refineries and gas stations , lining of chemical

reaction tank and sedimentation tank , secondary lining , etc.
