Description

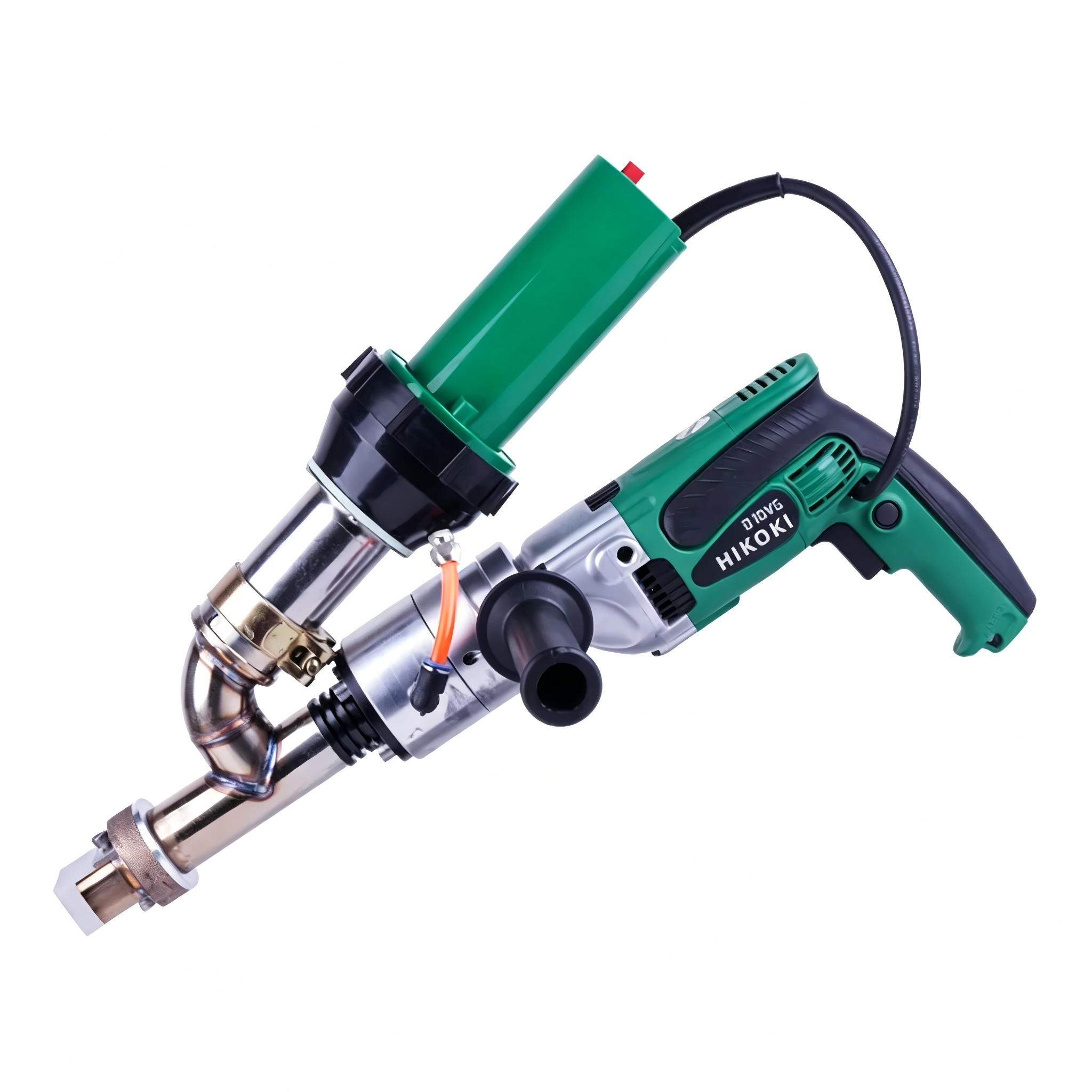

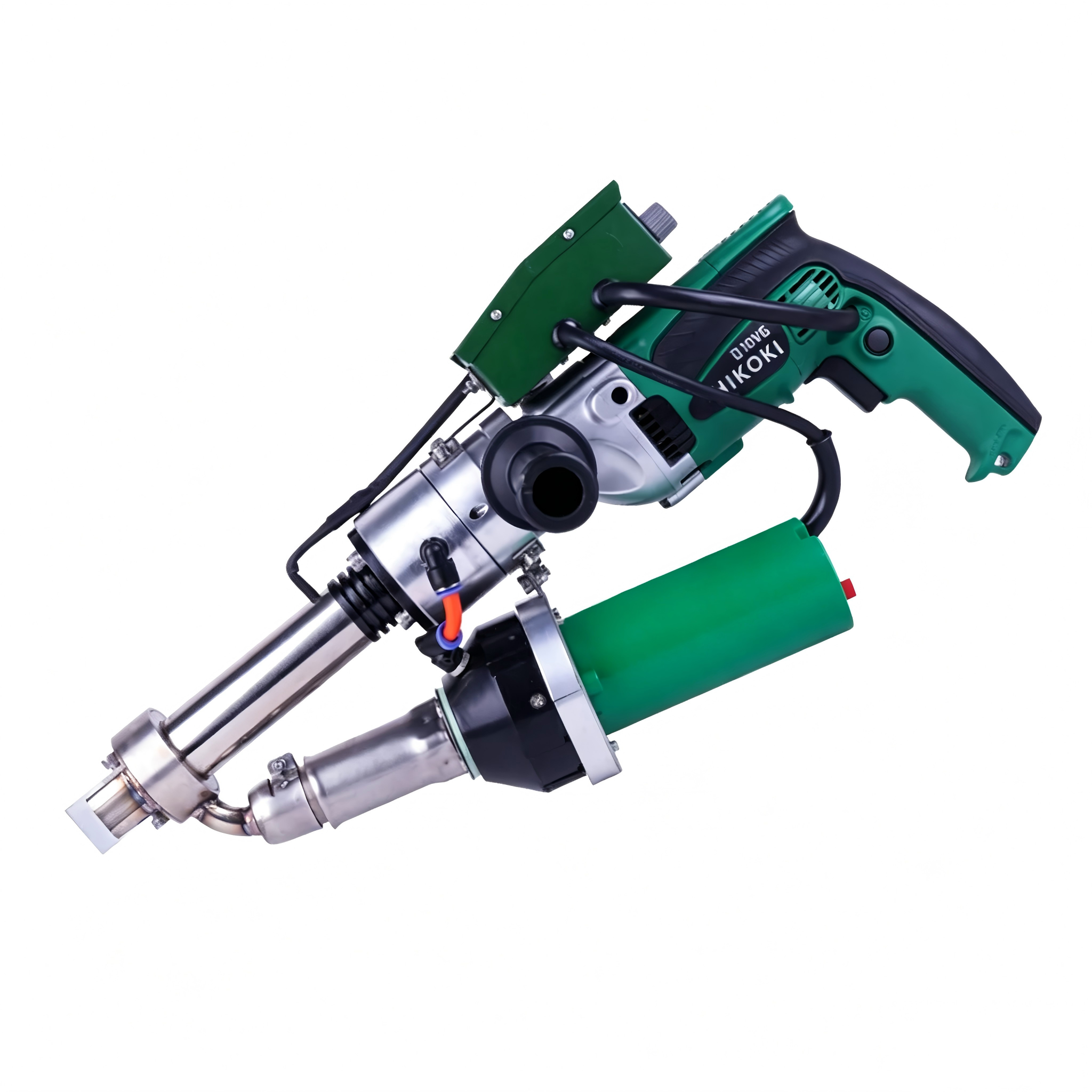

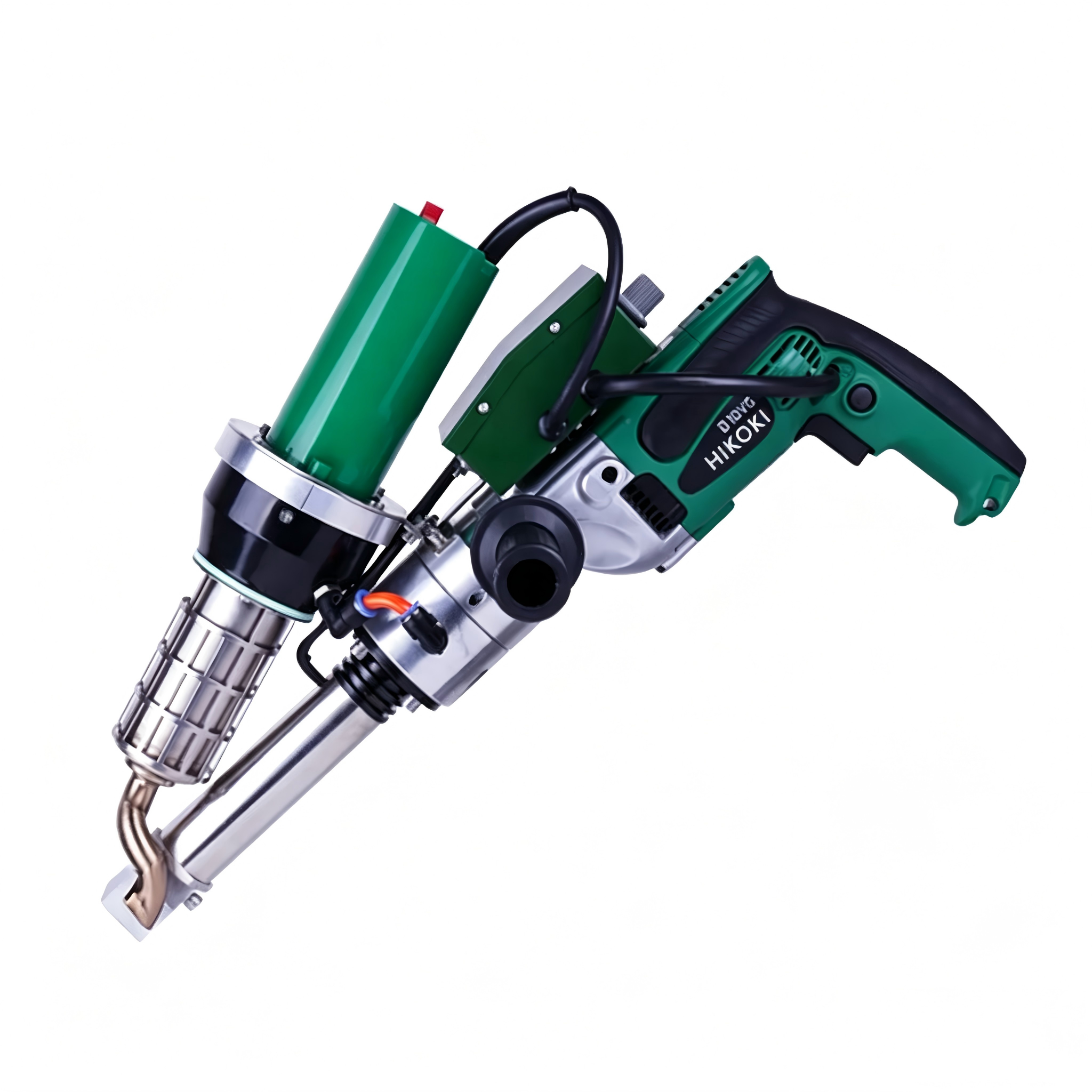

Description of single heating extrusion welding gun BGT-600 series

The BGT-600 series single heating extrusion welding gun uses 3400w hot air to independently heat the base metal and is equipped with a welding nozzle with anti-scald design. It uses a Hitachi electric drill as the extrusion motor. The fuselage is small, easy to operate, powerful, and can be continuously welded. It is mainly used for welding plates, film materials, pipes, water tanks, plastic parts, etc. of thermoplastic materials such as PE and PP.

Features and advantages of single heating extrusion welding gun BGT-600 series

1.Dual-pole independent heating system: The feeding heating system and the hot air heating system are independently separated to ensure that the melting temperatures of the base metal and the welding rod are the same, so as to achieve the best welding effect.

2.Digital temperature control display system: Controlled by microcomputer chip, easy to operate and intuitive, with strong protection function.

3.Anti-scald design, 360-degree rotating welding nozzle: The anti-scald welding nozzle is equipped with left air outlet and upper air outlet, and can be adjusted in all directions at 360 degrees to meet different application needs.

4.Cold start protection: If the preset melting temperature is not reached, the extrusion motor will be automatically turned off, effectively avoiding damage to the equipment caused by misoperation.

5.Use Japanese Hikoki electric drill as the extrusion motor. The fuselage is small, easy to operate, stable in performance and can be continuously welded.

6.The shape design of the air gun under the extrusion electric drill enables workers to weld quickly in narrow welding occasions.

7.Accept small orders and meet small batch customization services.

8.Meet the plug requirements of different voltage requirements in different countries and EU standards, US standards, and British standards.

9.Standardized production, full mold processing, high assembly precision, stable quality and long service life.

PP Compression FittingsHigh Pressure FIttings SDR6-SDR17HDPE Fabricated Segments ttings

We have completed other related products, and tools to complete with our HDPE Pipe for your construction, One-stop supply, to meet your different requirements, and save your cost and time, Please visit our HDPE Fittings Category and Welding Machine Category, Contact Us To get more details.

Specification

Description of single heating extrusion welding gun BGT-600 series

Other specifications have not been shown on our dimension chart, please CONTACT US for more information

Application

I. Plastic processing field

1.Plastic product repair: It can be used to repair cracks or damages in some large plastic containers, pipes, etc. For example, in the chemical industry, when some plastic storage tanks are slightly damaged, the extrusion welding gun can be used for rapid repair to avoid material leakage.

2.Plastic model making: In the model making industry, the extrusion welding gun can be used to splice and reinforce plastic model components to make the model more solid and refined. For example, when making airplane models and car models, the extrusion welding gun can be used to seamlessly connect different plastic parts.

II. Waterproof engineering field

1.Roof waterproofing: In roof waterproofing construction, the extrusion welding gun can be used to weld waterproof membranes to ensure a tight and seamless connection between the membranes and effectively prevent rainwater penetration. Especially for some roofs with complex shapes, the extrusion welding gun can perform welding operations flexibly to improve the waterproof effect.

2.Underground waterproofing: In underground projects such as basements and underground garages, the extrusion welding gun can be used to weld waterproof membranes to provide reliable waterproof protection for underground spaces.

III. Advertising sign making field

1.Acrylic letter making: In the production process of acrylic letters, the extrusion welding gun can be used to connect acrylic plates to make the letters more solid. At the same time, the edges of acrylic letters can also be decorated to make them more beautiful.

2.Light box making: In light box making, the extrusion welding gun can be used to weld the plastic parts of the light box frame to ensure the structural stability of the light box. And it can be assembled and disassembled quickly, which is convenient for repairing and replacing internal lamps.

IV. Automobile repair field

1.Bumper repair: Automobile bumpers are usually made of plastic and may crack or be damaged after a collision. The extrusion welding gun can be used to repair the bumper and restore it to its original state, reducing the cost of replacing the bumper.

2.Interior part repair: Some plastic parts in the car interior, such as instrument panels and door panels, may be damaged during use. The extrusion welding gun can be used to repair these parts to improve the aesthetics and service life of the car interior.
