Description

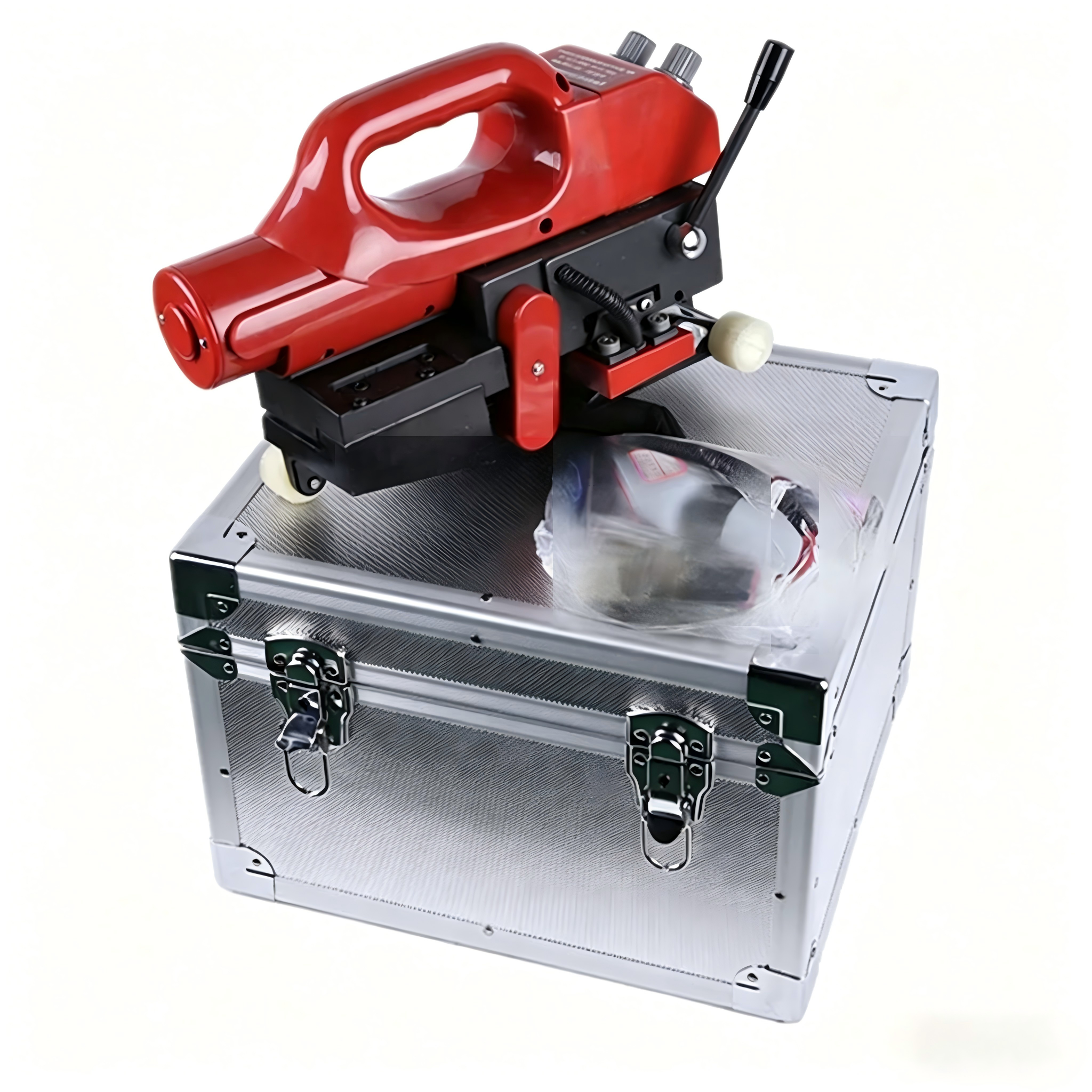

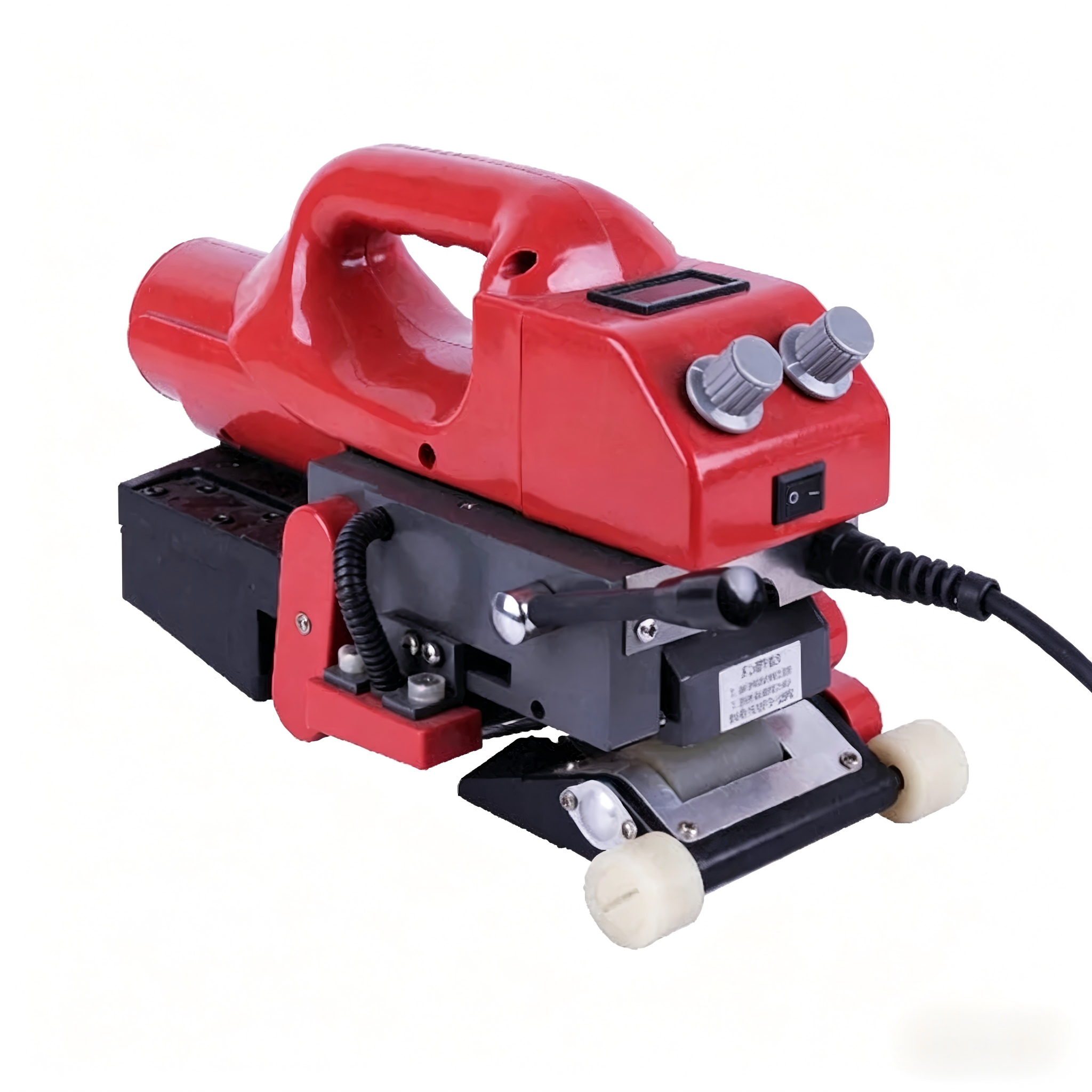

Description of Geomembrane Welding Machine BGT-800 Series

HDPE geomembrane welding machine BGT-800 series adopts advanced hot wedge structure, small volume, light weight, can weld 0.2mm-1.5mm thickness HDPE, LDPE, PVC, EVA, ECB, PP and other hot melt materials, the product can be applied to tunnel, subway, water conservancy, breeding, landfill, chemical mining, sewage treatment, roofing construction and other industries in the waterproofing seepage control project.

Advantages of Geomembrane Welding Machine BGT-800 Series

1. Accept small orders to meet small batch customized service.

2. Meet different voltage requirements of different countries and plug requirements of EU standard, US standard and UK standard.

3. Standardized production, full mold processing, high assembly precision, stable quality and long service life.

4. Advanced feedback intelligent digital control system, high control precision and strong protection function.

5. Unique pressure adjustment mechanism can be fine-tuned according to the material and thickness of membrane material to achieve the best welding effect.

6. Imported silicone pressure wheel, good elasticity, high temperature resistance, wear resistance; special knurled steel pressure wheel, non-slip, non-abrasive, more than 1mm membrane material welding effect is better.

7. Special alloy cutter supporting high-power heating tube, high heating efficiency, long service life.

8. The product comes with an additional maintenance spare parts kit, including maintenance tools, fuses, spare hot wedge and pressure roller.

How to choose the model of HDPE geomembrane welding machine BGT-800 series?

BGT-800 this welding machine is suitable for 0.2-1.5mm thickness of the membrane, if the welding of the membrane thickness is mainly more than 1mm, you can choose the steel wheel models, 1mm below the silicone pressure wheel, steel wheel welding the thinnest thickness of the thinnest not less than 0.8mm this way. If there are thick and thin that still use silicone pressure wheel.

BGT-800 welding machine, 1100w compared to 800w welding efficiency and effect will be better, especially for a little thicker membrane material (such as most of the 1mm or 1-1.5mm thickness of the majority of cases) can consider whether to buy 1100w.

BGT-800, BGT-810, BGT-820: These three welding machines do not have the function of digital display, lap width is different.

BGT-800D welding machine has digital display function.

We have completed HDPE Fittings and Pipes, and tools to complete with our HDPE Pipe for your construction, One-stop supply, to meet your different requirements, and save your cost and time, Please visit our HDPE Fittings Category and Welding Machine Category, Contact Us To get more details.

Specification

Specification of Geomembrane Welding Machine BGT-800 Series

Application

Applications of Geomembrane Welding Machine BGT-800 series

Geomembrane welding machine BGT-800 series, the temperature control part of the welding machine adopts automatic constant temperature PID control, the welding machine has excellent performance, easy operation, high welding speed and good welding quality. It can be widely used in the following occasions:

1. environmental protection, sanitation (such as domestic landfills, sewage treatment plants, power plant regulating pools, industrial, hospital solid waste, etc.)

2. water conservancy (such as seepage control, plugging, reinforcement of dams of rivers, lakes and reservoirs, seepage control of drains, vertical heart wall, slope protection, etc.)

3. Municipal engineering (subway, subway engineering of buildings, planting roofs, seepage control of roof gardens, lining of sewage pipes, etc.)

4. Gardening (artificial lake, river, cistern, golf course pond lining, slope protection, green lawn waterproofing moisture, etc.)

5. Petrochemical (chemical plants, refineries, petrol stations, seepage control of storage tanks, chemical reaction tanks, lining of sedimentation tanks, secondary lining, etc.)

6. Mining industry (seepage control of washing tanks, heap leaching tanks, ash dumps, dissolving tanks, sedimentation tanks, stockpiles, tailings lining, etc.)

7. Transportation facilities (foundation reinforcement of high-speed railroads and highways, seepage control of tunnels and culverts)

8. Agriculture (seepage control of reservoirs, drinking water pools, water storage ponds, irrigation systems)

9. Aquaculture (intensive, factory farming ponds, fish ponds, shrimp pond lining, sea cucumber circle slope protection, etc.)

10. Salt industry (salt crystallization ponds, brine ponds thatching, salt film, salt pond plastic thatching film)

11. National defense engineering (tunnels and culverts for national defense projects, etc.)
